SVE40
4MP High Performance Digital Low Light Full-Color Night Vision Binocular
Feature:
4MP Real Resolution;
1/1.8 inch large-target ultra-sensitive image sensor ;
720P HD screen, support 10x digital zoom, clear observation details;
Full-color night vision imaging, night as day, remote imaging, recording reality;
Power Supply Battery 8500, work time>8 hours;
Support WDR 120dB;
Support video, photo, and support various formats and resolution options
Optional wireless WIFI transmission function, mobile APP
Product Overview
SVE40 full-color night vision device adopts large-target ultra-sensitive image sensor. ThroughAI ISP imaging engine, it can realize full-color imaging under1*10^-3 Luxillumination environment at night without infrared, laser and other illuminators. It can truly present color pictures without smear and low noise, and the imaging range is not limited by the distance of the illuminator. The imaging field is wide, and it has unique advantages in observing targets in the wild environment at night.
All-weather, all-time imaging with 940 nm fill light in extremely dark (moonless, starless) environments
Specification Parameters
lens parameters | ||
focal length | 25 mm@F0.8 | 15 mm@F0.85 |
field angle | 15.6°(H)×13.2°(V) | 25.2(H)°×18°(V) |
focusing methods | manual focusing | |
Day/night mode | Built-in infrared filter | |
performance parameter | ||
chip capability | Dual-core ARM Cortex A55@850MHz (3 DMIPS/MHz) 32KB I-Cache with built-in NPU processing engine | |
image sensor | 1/1.8 "Super Starlight CMOS | |

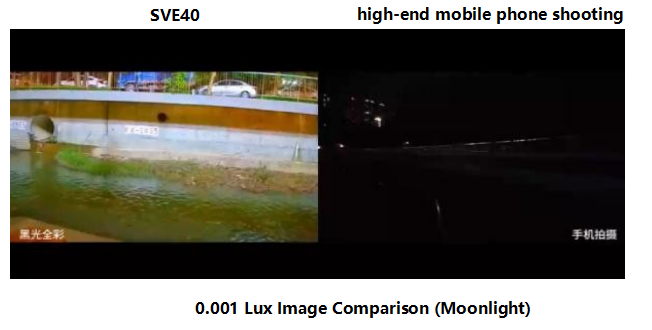

minimum illumination | Color 1*10^-3lux (0.001 Lux)@F0.8, AGC ON | |
screen quality | 3.5 inch HD 1280*720resolution | |
Video resolution | 2K 2688*1520@25fps，2K 2688*1520@12fps~25fps | |
photo resolution | 8MP（4K），12MP（8K） | |
electronic amplification | 10X Digital Zoom | |
video compression | H.264 | |
white balance | voluntarily | |
gain control | voluntarily | |
Wide Dynamic Range | 120dB | |
exposure mode | support automatic | |
AI ISPImage Engine | AI night vision image enhancement, AI super sensitive noise reduction, AI Super HDR | |
general parameters | ||
language | Simplified Chinese, Traditional Chinese, Português, English, Japanese, Français, Deutsch, italiano, España,pyccknn, عربي | |
Charging mode Power consumption | Type-C 5V/3A，≤2.5W | |
charging protection | Support overshoot, short circuit protection, battery reverse connection protection | |
duration of flight | Battery life 8H, 2*2100mAh (ICR 18500battery), support battery replacement | |
WiFi | Support optional WiFi function | |
Positioning/electronic compass | Reserved positioning/electronic compass data interface | |
SD card interface | Support Micro SD card storage (up to 256G), support USB data cable transmission | |
shell material | plastic | |
level of protection | Waterproof rating: IP65 | |
operating temperature and humidity | -20℃~60℃, humidity less than 95%(no condensation) | |
Equipment size | 170mm(L)*130mm(W)*59mm(H) | |
weight | ≤ 607g | |
bracket fixing aperture | Universal 1/4 inch hole position | |
Specification Datasheet Download
SVE40 lowligth full color night vision Binocular.pdf
